Racing with Sensors

March 5th started one of the hardest and craziest amateur rallies in the world: the Panda Raid. It is a seven-day race through the Moroccan desert. The only essential requirement is to drive an old Fiat Panda (Seat Marbella in Spain).

What makes this rally unique is its rules. GPS and internet are not allowed during the race. Participants only can use a compass and a roadbook to navigate and avoid getting lost. Of course, the intuition and expertise of the drivers play an important role.

The Waspmote Plug & Sense! is equipped with a temperature and humidity sensor, ultraviolet sensor and external GPS antenna. Image courtesy of Libelium.

This year, one member of Libelium Team took part with his 25-year-old Fiat Panda. This vehicle was different to any other, because it was equipped with a Plug & Sense! Sensor Platform from Libelium. This node was used to measure temperature, humidity, ultraviolet radiation and GPS position every 10-15 minutes.

This device is ready to send data by means of different communication protocols to a Meshlium Gateway and, from there, to a cloud server. In this case, the appropriate communication protocol is 3G but, due to the difficult to find it during the race, it was decided to store the data on an SD Memory Card. To collect the data, the Waspmote Plug & Sense! Sensor Platform installed some sensors:

• Sensirion to measure temperature and humidity;
• Ultraviolet Sensor, to measure UV solar radiation; and
• external GPS antenna.

Sensor Platform Helps Meet Project Goals

This project had two objectives. Firstly, the objective was to demonstrate that a Waspmote Plug & Sense! Sensor Platform was able to monitor the environmental changes (temperature, humidity, UV radiation) and the car position during the different stages of the rally. It was made perfectly, what prove that a Waspmote Plug & Sense! Sensor Platform could be used as a log book for trips and expeditions.

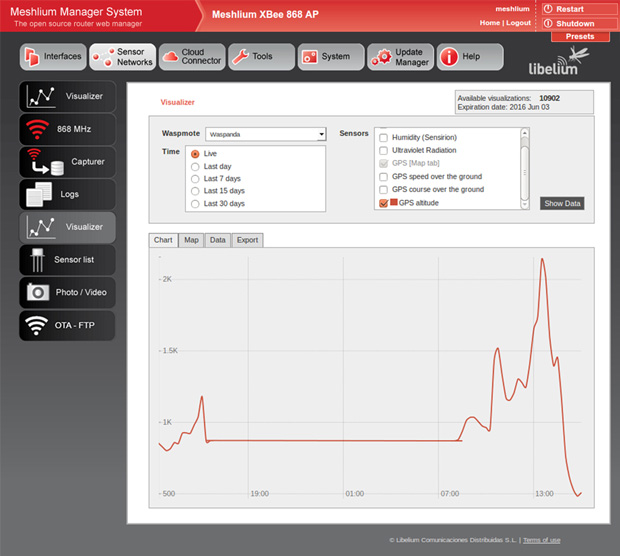

This is an example of the Meshlium Manager System visualizer. In it, all data collected can be managed and checked. In this case, it shows a chart about the GPS altitude variation during 24 hours. It can be seen a flat segment which reflect the period of time between two legs in which the Waspmote Plug & Sense! Sensor Platform was switched off.

The Meshlium Gateway lets users track and visualize all the collected data from the Waspmote Plug & Sense! system. Image courtesy of Libelium.

Secondly, was to prove its resistance and strength, which were absolutely verified. The Waspmote Plug & Sense! Sensor Platform has an IP67 certification, which is given to electronic devices as our nodes and which ensures its resistance to sand, mud and water.

During this hard rally there were several environmental and geographic changes. It passed from the Sahara dessert to the Atlas mountain chain. So variation of altitude, pressure, humidity, temperature and UV radiation were important. Besides, the terrain also changed hugely form the desert sand to the mountain rocks.

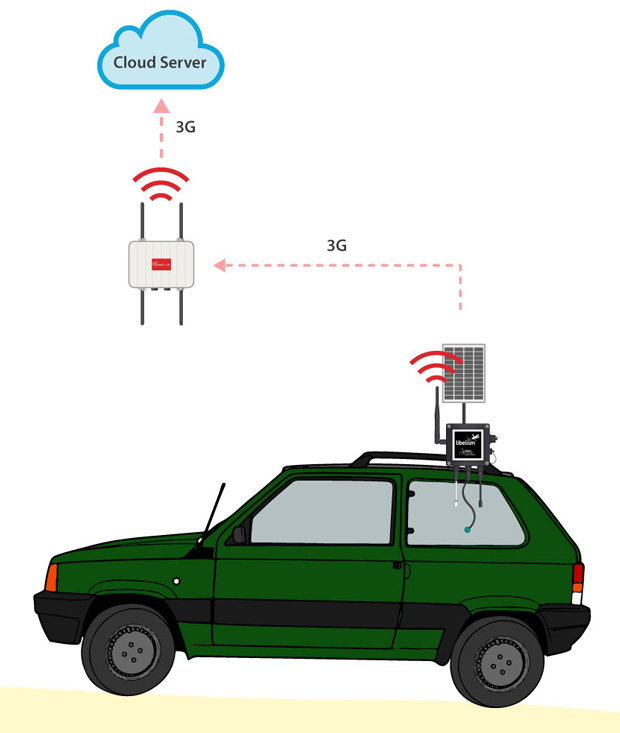

With internet access, the Waspmote Plug & Sense! streams data to the cloud. For the Panda Rally, data collected on an SD card. Image courtesy of Libelium.

In this case, the Waspmote Plug & Sense! Sensor Platform resisted without problem grab to the Fiat Panda roof rack. When the pilot return to Libelium checked that all data was collected properly and there were not any rest of materials, as sand or water, which could damage the sensors. Therefore, the resistance given by the IP67 certification was proved and ensured.

Finally, besides its technological and experimental main objective, this race has another caring and kind goal: To help Moroccan children with school supplies. Every pilot has to carry in his Fiat Panda 20 kg of school supplies in order to give them to any school they find along the path.

Libelium’s Waspmote Plug & Sense! Sensor Platform proved its performance in extreme conditions and it returned intact, achieving its objectives of environmental monitoring and checking its resistance.
